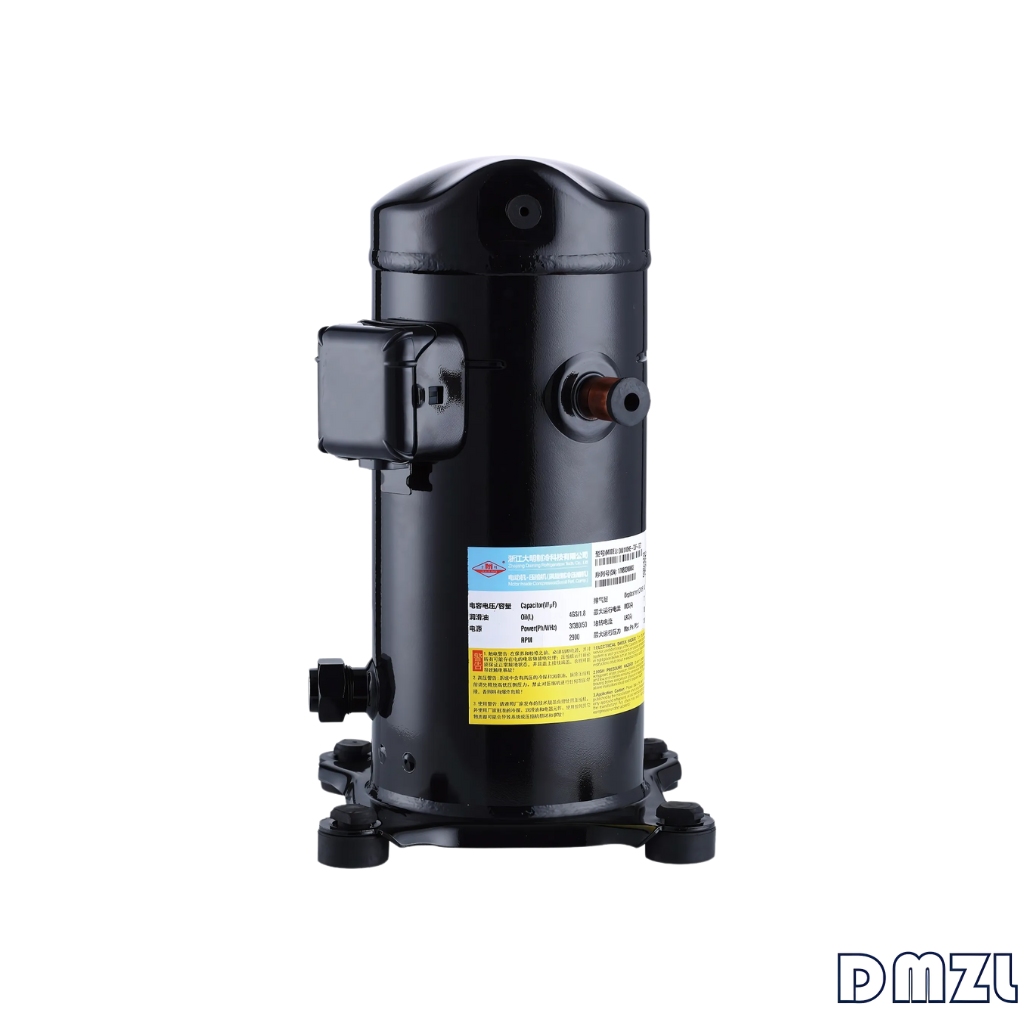

DMZL DF35HE Low-Temp Hermetic Scroll – 5HP R404a/R507 – 380V

DMZL DF35HE Low-Temp Hermetic Scroll – 5HP R404a/R507 – 380V

The DF series fully enclosed scroll refrigeration compressor is a critical component in advanced refrigeration systems, designed to efficiently manage refrigerant circulation and energy transfer.

By integrating high efficiency, energy conservation, operational safety, and environmental protection, the DF series is ideal for diverse temperature control scenarios, including refrigeration and freezing applications.

Major Functions

Compression

• The scroll plate, driven by the motor, rotates to create centrifugal force, propelling the refrigerant gas along a spiral groove where it is compressed.
• This process raises the gas’s pressure and temperature.

Heat Dissipation

• During compression, the refrigerant releases substantial heat, which must be expelled through a condenser or evaporator to ensure stable system operation.

Throttling

• The high-pressure, high-temperature refrigerant passes through a throttling device (e.g., capillary)
• Velocity increases and pressure drops, producing low-temperature, low-pressure wet steam.

Absorption

• This low-temperature, low-pressure steam enters the absorber and transfers heat to water or other solutions, becoming saturated steam or superheated water.

Regeneration

• The saturated steam or superheated water then moves to the evaporator, releasing heat to the cooled medium.
• Moisture is separated and returned to the refrigerant cycle.

Key Features and Advantages

Dual Flexible Design

• Enhances the longevity and reliability of the scroll disc seals while improving tolerance to liquid and impurities.

Superior Energy Efficiency

• Unlike conventional wear-based mechanisms, the scroll disc’s operation improves with time, delivering higher volumetric efficiency.

Low Noise & Vibration

• Symmetrical compression chambers and high-precision manufacturing eliminate the need for vibration-absorbing devices, ensuring quiet operation.

Advanced Materials

• Utilizes aerospace-grade composite bearings with porous bronze and PTFE coatings.
• Featuring extremely low friction to extend operational life even with limited lubrication.

Uninstall Startup Technology

• After shutdown, compression components automatically disengage to equalize internal pressure, eliminating the need for extra startup devices.
